vCenter Server – Key Provider Migration

I had the daunting task of migrating from one key provider to another and I was pleasantly surprised how well it went so I wanted to share the steps I followed.

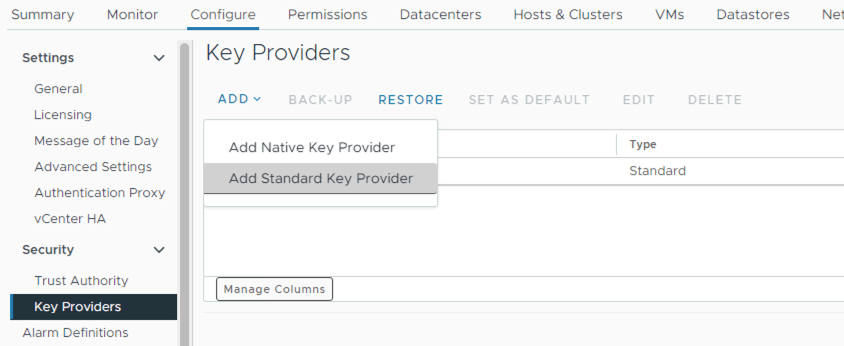

• Once you have the new key provider, connect it to vCenter as a new key provider:
  vCenter -> Configure -> Security -> Key Providers -> Add New Standard Key Provider

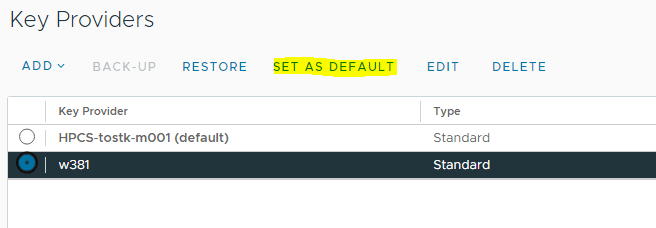

• Set the new key provider as the default for new objects

• Install PowerCLI if needed
• The Modules needed are VMEncryption and VsanEncryption PowerCLI modules. Download the psm1 file for each and run Import-Module to import them.
• Open PowerCLI and connect to vCenter – Connect-VIServer
• We will use the following PowerCLI commands to rekey, host keys, and virtual machine keys

Host Keys

• In almost all cases hosts in the same cluster are protected by the same provider and key, but this process ensures they are protected by the new key provider
• It is assumed here that all hosts are already in clusters enabled for encryption. If not, this command will initialise hosts and clusters for encryption.

foreach($myhost in Get-VMHost) {
  echo $myhost.name
  Set-VMHostCryptoKey -VMHost $myhost -KMSClusterId new-key-provider}

• Display host key providers to verify result

Get-VMHost| Select Name,KMSserver

Virtual Machine Keys

• Rekey all encrypted virtual machines
• Each rekey operation starts a task which typically takes a couple minutes to complete for each encrypted VM

foreach($myvm in Get-VM) {  if($myvm.KMSserver){
    echo $myvm.name
    Set-VMEncryptionKey -VM $myvm -KMSClusterId new-key-provider
  }
}

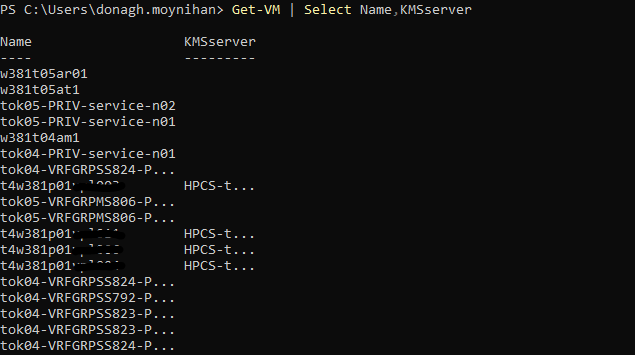

• Display all virtual machines key providers to verify result. Some may be unencrypted.

Get-VM| Select Name,KMSserver
